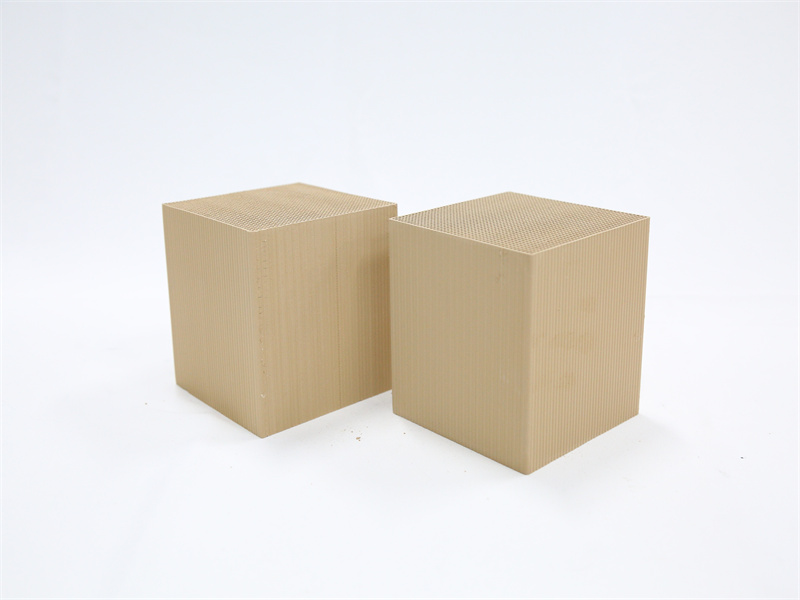

Liangjian Honeycomb Zeolite Specifications and Performance Parameters Table |
||||
|
index |
parameter |
|||
|
Specification parameter |
Appearance color |
Light yellow or brown |
||
|
Hole specification |
quadrate 40×40 |
|||
|
length |
100±2mm |
|||
|
width |
100±2 mm |
|||
|
height |
100±2 mm |
|||
|
pitch |
1.5-1.8mm |
|||
|
Inner wall thickness |
0.5 mm |
|||
|
Outer wall thickness |
1.5 mm |
|||
|
Block volume |
1 L |
|||
|
Specific gravity |
M6 |
430±20Kg/m³ |
||
|
M3 |
370±20Kg/m³ |
|||
|
Macroscopic surface area |
1150m²/m³ |
|||
|
Performance parameter
|
Design adsorption temperature |
30 ℃ |
||
|
Maximum adsorption temperature allowed |
50 ℃ |
|||
|
Allowable minimum adsorption temperature |
unlimited |
|||
|
Desorption temperature |
150-500 ℃ |
|||
|
Design service humidity |
65 % |
|||
|
Maximum permissible humidity |
80 % |
|||
|
Minimum allowable service humidity |
unlimited |
|||
|
Honeycomb zeolite wind resistance |
＜0.04 Kpa/layer |
|||
|
Compressive strength |
Orientation of hole |
≥3 MPa |
||
|
Radial direction |
≥1MPa |
|||
|
Zeolite type |
Target time |
Recommended concentration |
||
|
|
≥240min |
100mg-200mg |
||
|
M6 |
≥360min |
200mg-300mg |
||
