Product features:
System function and main features
Installed on the ship to achieve the ship's autonomous navigation
Full coherent MTD signal processing, high quality clutter suppression ability, excellent moving target detection and tracking ability under strong sea clutter background, ensure the ship navigation needs.
Navigation and collision avoidance are integrated
The multi-stage short-pulse blind and continuous-wave extremely short-range target detection technology not only realizes the full-range target detection and tracking in one working mode, but also realizes the "0" distance target detection required for collision avoidance. A radar integrates navigation and collision avoidance functions.
Fast tracking and accurate positioning
It can effectively locate, track and identify all kinds of targets within the jurisdiction (such as small fishing boats, speedboats, etc.), and quickly determine the target attributes.
Work 24/7, alert 24/7
It can work continuously for 24 hours and has the ability to work all day long.
Photoelectric linkage
Working in tandem with a variety of detectors such as photoelectric and AIS, the advantages of multiple detection means complement each other, forming a multiple intelligent perception system to achieve automatic capture and forensics.
Intelligent analysis early warning
The multi-intelligent sensing system can focus on monitoring specific targets (fishing vessels) and sensitive areas (no-take areas), and can carry out statistics, classification and fishing behavior analysis of targets, and send alarms to suspicious targets or suspicious behaviors.
Reliable, easy to operate, can be unattended
The system adopts solid state launch, digital integrated design technology, high reliability, good maintainability, friendly interface, simple operation, and unattended.
Strong expansibility
The system can be flexibly configured, with multi-station networking capabilities, support multi-station data fusion, information sharing, high resource utilization, and strong information utilization capabilities.

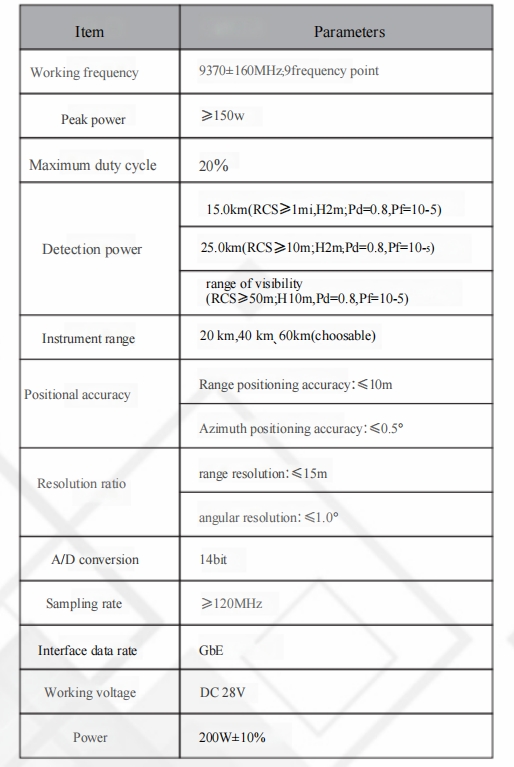

Main technical parameters of radar:
