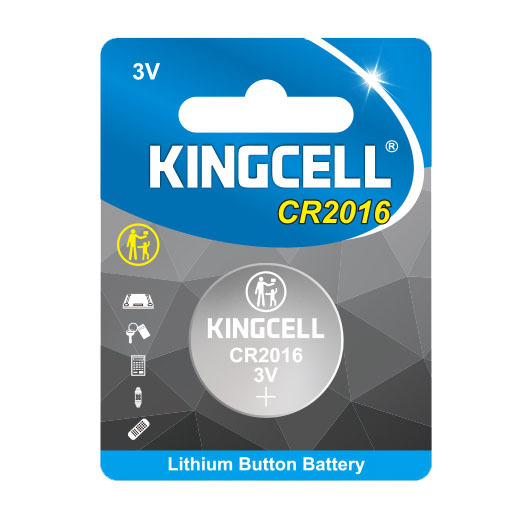

CR2016 CR2025 CR2032 Lithium Button Cell

Non-rechargeable lithium-manganese button batteries are typically used in applications that require disposable batteries because they are pre-made and do not require maintenance or charging. The features of these batteries include high energy density, small size, light weight, and stable discharge voltage, which are widely used in low-power electronic devices such as watches, calculators, and remote controls.

Product Details

KINGCELL brand: KINGCELL品牌

Produced by HUATAI: 华太制造

Dry battery: 干电池

CR2016 : CR2025

CR2032: CR1216

Non-rechargeable: 不可充电

Item No	System	Voltage	Capacity	Dimension	Weight	Recommended	Max Pulse Current
Item No	System	Voltage	Capacity	Dimension	Weight	Continuous Current	Max Pulse Current
CR927	Lithium	3.0V	30mAH	9.5x2.7mm	0.5g	0.1mA	5mA
CR1216	Lithium	3.0V	25mAH	12.5x1.6mm	0.7g	0.2mA	5mA
CR1220	Lithium	3.0V	35mAH	12.5x2.0mm	0.9g	0.2mA	5mA
CR1225	Lithium	3.0V	50mAH	12.5x2.5mm	1.0g	0.2mA	5mA
CR1616	Lithium	3.0V	50mAH	16.0x1.6mm	1.2g	0.3mA	8mA
CR1620	Lithium	3.0V	70mAH	16.0x2.0mm	1.3g	0.3mA	8mA
CR2016	Lithium	3.0V	75mAH	20.0x1.6mm	1.8g	0.3mA	10mA
CR2025	Lithium	3.0V	150mAH	20.0x2.5mm	2.5g	0.5mA	15mA
CR2032	Lithium	3.0V	210mAH	20.0x3.0mm	3.0g	0.75mA	15mA
CR2320	Lithium	3.0V	130mAH	23.0x2.0mm	3.0g	0.75mA	15mA
CR2325	Lithium	3.0V	185mAH	23.0x2.5mm	3.0g	0.4mA	25mA
CR2330	Lithium	3.0V	250mAH	23.0x3.0mm	4.0g	0.75mA	15mA
CR2430	Lithium	3.0V	270mAH	24.5x3.0mm	4.2g	1.0mA	15mA
CR2450	Lithium	3.0V	550mAH	24.5x5.0mm	6.2g	1.0mA	15mA
CR2477	Lithium	3.0V	800mAH	24.5x7.7mm	7.0g	1.0mA	15mA
