| Item No | System | Voltage | Weight | Diameter | Height |
| AA | 0%Hg Heavy Duty | 1.50V | 13.6±0.2g | 13.7-14.5mm | 49.5-50.5mm |
| AAA | 0%Hg Heavy Duty | 1.50V | 7.2±0.2g | 9.8-10.5mm | 43.5-44.5mm |
| C | 0%Hg Heavy Duty | 1.50V | 43.0±0.5g | 24.9-26.2mm | 48.6-50.0mm |
| D | 0%Hg Heavy Duty | 1.50V | 89.0±0.5g | 32.3-34.2mm | 59.5-61.5mm |
| 9V | 0%Hg Heavy Duty | 9.0V | 35.0±0.2g | L(24.5-26.5)mm | 46.5-48.5mm |
| W(15.5-17.5)mm | |||||
| 4R25 | 0%Hg Heavy Duty | 6.0V | 368.0±2g | L(66.5-67.0)mm | 112.0-112.5mm |
| W(66.5-67.0)mm | |||||

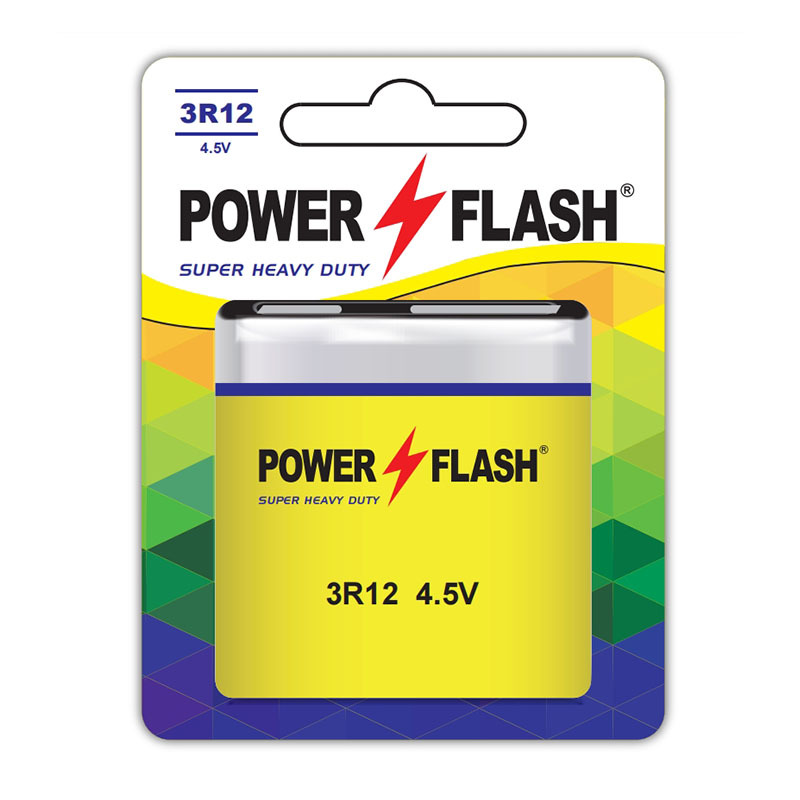

| 3R12 | 0%Hg Heavy Duty | 4.50V | 132.0±2g | L(60.0-62.0)mm | 63.0-67.0mm |
| W(20.0-22.0)mm |
| Packing Specifications | ||||||
| Type | Jacket | Pack | Inner Box(pcs) | CTN(pcs) | Meas.(cm) | G.W(kgs) |
| R6P UM-3 AA | Aluminum | 4pcs/card | 48 | 960 | 52.3x28.3x21.0 | 12.5 |
| R03 UM-4 AAA | Aluminum | 4pcs/card | 48 | 960 | 42.8x28.3x21.0 | 6.5 |
| R20P UM-1 D | Aluminum | 2pcs/card | 24 | 96 | 33.5x24.5x20.0 | 14 |
| R14P UM-2 C | Aluminum | 2pcs/card | 24 | 96 | 29.5x19.0x20.0 | 7.5 |
| 6F22 | Aluminum | 1pc/card | 10 | 240 | 42.0x28.2x26.7 | 11.5 |
| 4R25 | Aluminum | 1pc/shrink | 6 | 18 | 44.0x22.3x14.3 | 9.5 |
| 3R12 | Aluminum | 1pc/card | 10 | 80 | 39.2x27.8x19.2 | 10.2 |
